The Future of Music is Math
New system uses only simple math to calculate all 1,193,556,233 harmonic combinations and permutations possible in 12-tone music.
The following is a plain-language description of the high school-level math used to create the Harken Music system.
After reviewing or skimming the math, please try our open-source demo* at harkenmusic.com to see and hear everything for yourself. You may choose any combination size (from 1 to 12 notes) from the pull-down menu; then select any particular combination from the numbered list, to view and hear all permutations, reflections (inversions), and rotations (transpositions).
*Note: a desktop or laptop computer and current web browser (Chrome, Safari, etc.) are required for using the demo; however there are no downloads, sign-up, or subscription requirements.
Combinations
There are 2,048 possible combinations (n) for each of the 12 potential tonic notes.
In this system, the tonic [0] is fixed and required in every combination—thus we use the binomial coefficient “11 choose n for n = 1 to 11” to calculate the following.
Tonic (1): 1
Intervals (2): 11
Triads (3): 55
Tetrachords (4): 165
Pentatonics (5): 330
Hexatonics (6): 462
Heptatonics (7): 462
Octatonics (8): 330
Nonatonics (9): 165
Decatonics (10): 55
Hendecatonics (11): 11
Chromatic Scale (12): 1
The sum of these results is 2,048, and because any of 12 notes can be used for the fixed tonic [0], the total of all possible unique harmonic combinations is 24,576 (2,048 x 12).
Permutations
When order is considered, the total expands rapidly to include 1,193,556,233 possible permutations of 24,576 combinations. Using factorials (n!), we calculate the total number of permutations possible for each combination size as follows.
1! = 1 x 1 = 1 tonic
2! = 2 x 11 = 22 intervals
3! = 6 x 55 = 330 triads
4! = 24 x 165 = 3,960 tetrachords
5! = 120 x 330 = 39,600 pentatonics
6! = 720 x 462 = 332,640 hexatonics
7! = 5,040 x 462 = 2,328,480 heptatonics
8! = 40,320 x 330 = 13,305,600 octatonics
9! = 362,880 x 165 = 59,875,200 nonatonics
10! = 3,628,800 x 55 = 199,584,000 decatonics
11! = 39,916,800 x 11 = 439,084,800 hendecatonics
12! = 479,001,600 x 1 = 479,001,600 tone-rows
Thus the grand total of all possible unique harmonic combinations and permutations is: 1,193,556,233.
This grand total includes every note, interval, triad, chord, arpeggio, scale, mode, etc., including all transpositions, inversions, and other transformations, possible in 12-tone music.
The Numbers
This is a duodecimal or base-12 system that uses the following sequence of 12 unique numbers to identify the notes or pitches in a given combination:
[0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11]
Any musical pitch may be used for the fixed tonic [0]; and thus every note that follows will be heard relative to the tonic, producing the following intervals.
[0] = “tonic” or [0, 0] “unison” or “octave”
[0, 1] = “minor 2nd”
[0, 2] = “major 2nd”
[0, 3] = “minor 3rd”
[0, 4] = “major 3rd”
[0, 5] = “perfect 4th”
[0, 6] = “tritone”
[0, 7] = “perfect 5th”
[0, 8] = “minor 6th”
[0, 9] = “major 6th”
[0, 10] = “minor 7th”
[0, 11] = “major 7th”
Unisons and Octaves
We assign unisons and octaves to the same numerical value. For example, the number “0” represents the same pitch class across all octaves, meaning the tonic is “0” whether it’s in the bass, middle, or the treble ranges. While octaves and unisons are technically intervals, they hold no distinct harmonic function beyond emphasizing the foundational tone, serving instead as structural points of return within the tonal space.
We can manage octaves moving in both directions (up and down) using only math. Here’s the formula:
x = (n + 12y) mod 12
Here’s how it works moving up:
Set y as a positive integer (e.g., y = 1 moves n up one octave)
Here’s how it works moving down:
Set y as a negative integer (e.g., y = −1 moves n down one octave)
For example, if we assign MIDI pitch number 50 as the fixed tonic (0) and decide to shift that pitch up one octave (+12), we simply set variables n = 50 and y = 1 and apply the formula, which raises the pitch one octave from MIDI number 50 to 62.
Cycle Order
This system uses two simple formulas to calculate ascending and descending cycles: (n * 7) % 12 for n = 0 to 11 produces the ascending cycle [0, 7, 2, 9, 4, 11, 6, 1, 8, 3, 10, 5], while (n * 5) % 12 for n = 0 to 11 produces the descending cycle [0, 5, 10, 3, 8, 1, 6, 11, 4, 9, 2, 7].
Ascending Cycle
(n * 7) % 12 (for n = 0 to 11) = [0, 7, 2, 9, 4, 11, 6, 1, 8, 3, 10, 5]
(0 * 7) % 12 = 0
(1 * 7) % 12 = 7
(2 * 7) % 12 = 2
(3 * 7) % 12 = 9
(4 * 7) % 12 = 4
(5 * 7) % 12 = 11
(6 * 7) % 12 = 6
(7 * 7) % 12 = 1
(8 * 7) % 12 = 8
(9 * 7) % 12 = 3
(10 * 7) % 12 = 10
(11 * 7) % 12 = 5
Descending Cycle
(n * 5) % 12 (for n = 0 to 11) = [0, 5, 10, 3, 8, 1, 6, 11, 4, 9, 2, 7]
(0 * 5) % 12 = 0
(1 * 5) % 12 = 5
(2 * 5) % 12 = 10
(3 * 5) % 12 = 3
(4 * 5) % 12 = 8
(5 * 5) % 12 = 1
(6 * 5) % 12 = 6
(7 * 5) % 12 = 11
(8 * 5) % 12 = 4
(9 * 5) % 12 = 8
(10 * 5) % 12 = 2
(11 * 5) % 12 = 7

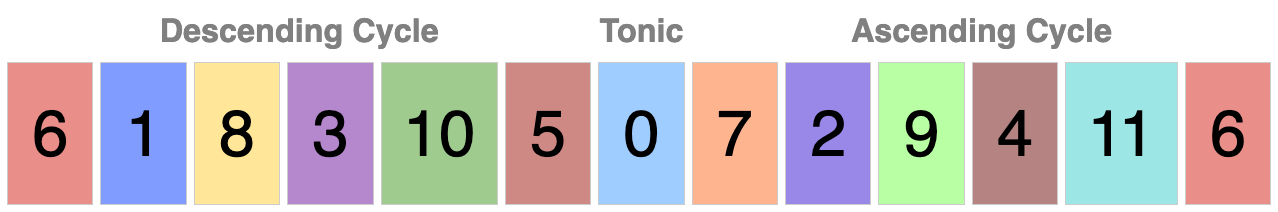

The cycle order is bi-directional, so ascending and descending cycles may be combined: where the tonic [0] is located in the middle of the sequence, with the tritone [6] at each end.
The tritone interval [6] appears twice to preserve left-right symmetry, but is only counted once, so the cycle order remains entirely within base-12.
Example
Choosing the four-number combination [0, 4, 7, 10], we calculate (4!) there are a total of 24 possible permutations; a simple recursive function is used to produce all the variations in the following order.
[0, 4, 7, 10]
[0, 4, 10, 7]
[0, 7, 4, 10]
[0, 7, 10, 4]
[0, 10, 4, 7]
[0, 10, 7, 4]
[4, 0, 7, 10]
[4, 0, 10, 7]
[4, 7, 0, 10]
[4, 7, 10, 0]
[4, 10, 0, 7]
[4, 10, 7, 0]
[7, 0, 4, 10]
[7, 0, 10, 4]
[7, 4, 0, 10]
[7, 4, 10, 0]
[7, 10, 0, 4]
[7, 10, 4, 0]
[10, 0, 4, 7]
[10, 0, 7, 4]
[10, 4, 0, 7]
[10, 4, 7, 0]
[10, 7, 0, 4]
[10, 7, 4, 0]
Transformations
Reflections (12 Inversions)
Every combination and permutation in music can be transformed (inverted) using reflections. For example, using the 4-number combination [0, 4, 7, 10], we calculate the following inversions using the formula: n_reflected = (2a − n + 12) % 12.
[2, 0, 5, 8]
[9, 7, 0, 3]
[4, 2, 7, 10]
[11, 9, 2, 5]
[6, 4, 9, 0]
[1, 11, 4, 7]
[8, 6, 11, 2]
[3, 1, 6, 9]
[10, 8, 1, 4]
[5, 3, 8, 11]
[0, 10, 3, 6]
[7, 5, 10, 1]
Here’s how it works.
n_reflected = (2a − n + 12) % 12
The expression 2a − n calculates the mirror image of n across the axis a; adding 12 ensures the result remains a positive number, as the subtraction could result in a negative number; the modulo (% 12) limits the range to maintain the 12-tone system.
Example:
To reflect note n = 4 around axis a = 7: compute 2a − n: 2 * 7 − 4 = 14 − 4 = 10; add 12 for safety: 10 + 12 = 22; apply modulo 12: 22 % 12 = 10; so, the reflected note is 10.
Reflection Order = Cycle Order (Ascending)
No. | Axis | Angle | Cycle
| 0 | 0° | 0
| 3.5 | 105° | 7
| 1 | 30° | 2
| 4.5 | 135° | 9
| 2 | 60° | 4
| 5.5 | 165° | 11
| 3 | 90° | 6
| 0.5 | 15° | 1
| 4 | 120° | 8
| 1.5 | 45° | 3
| 5 | 150° | 10
| 2.5 | 75° | 5
Rotations (12 Transpositions)
Every combination and permutation in 12-tone music can be transformed (transposed) mathematically using rotations. For example, again using the 4-number combination [0, 4, 7, 10], we calculate the following transpositions using the formula: (n + t) % 12.
[0, 4, 7, 10]
[7, 11, 2, 5]
[2, 6, 9, 0]
[9, 1, 4, 7]
[4, 8, 11, 2]
[11, 3, 6, 9]
[6, 10, 1, 4]
[1, 5, 8, 11]
[8, 0, 3, 6]
[3, 7, 10, 1]
[10, 2, 5, 8]
[5, 9, 0, 3]
Rotation Order = Cycle Order (Ascending)
Here’s how it works.
(n + t) % 12
Where n = note number and t = transposition ; the modulo (% 12) takes the remainder to maintain the 12-tone system.
To rotate any note number or combination, simply add any transposition number; and use modulo to limit range to 12. For example: (n + t) % 12 = 0 + 7 % 12 = 7. Thus the combination [0, 4, 7, 10] transposes as shown above in ascending cycle order.
Conclusion and Discussion
All of 12-tone music is calculable using only this high school-level math.
After exhaustive online research, including extensive prompting of multiple AIs/LLMs, such as ChatGPT4o, Perplexity AI, and Gemini, it appears The Harken Music system is the first-ever to use only math to calculate, produce, and play all of the ≈1.2 billion harmonic structures that are possible in 12-tone music.
It cannot be overstated that this new system uses only mathematics and math related programming code. The programming does not include or use any databases, lookup tables, or other sources of data. Everything—nearly 1.2 billion musical combinations and permutations—is calculated on the fly.
See also: “Harken Music: A New Mathematical Framework for 12-Tone Harmony”, by ChatGPT 4o, and for an even deeper dive into the mathematics, read Factorials and Fractions “Navigating the 12-tone matrix,” by Mitch Kahle.
Constructive comments, suggestions, and ideas are welcome here.
This information and related software code are now available for free on Harken Music.com and Github as open-source software under the standard MIT License set forth below.
